How to Unbrick OnePlus 11R/ace 2 with PHK110 Firmware CPH2487 Firmware (Flash File)
This guide shows you how to fix various software issues on your OnePlus Ace 2 PHK110 using the official firmware. Whether you’re dealing with problems like being stuck on the logo, FRP reset, Fastboot Mode errors, bootloops (Lost Fastboot/Recovery), black screen or white screen after flashing, or a dead device, this firmware will help you get your phone back to normal.
Table of Contents
Prerequisites for How to Unbrick OnePlus 11R/Ace 2
Before you begin the unbricking process, make sure you have the following:
- MSM Tool: The official Mobile Software Management tool from OnePlus. You can obtain this from official OnePlus sources or authorized distributors. Ensure you have the correct version for the OnePlus 11R/Ace 2.
- A Windows PC: The MSM Tool is compatible with Windows PCs, so ensure you are using a computer with Windows 7 or later.
- USB Cable: A high-quality USB cable to connect your OnePlus 11R/Ace 2 to the PC.
- Battery Charged Above 10%: While this is not critical if the phone is fully powered off or bricked, it’s helpful to have enough charge to avoid interruptions during the process.
- Qualcomm Drivers: These drivers are essential for communication between your OnePlus 11R/Ace 2 and the PC. Install them before proceeding.
- Firmware for OnePlus 11R/Ace 2: Ensure you have the correct firmware files for your device. You can download them from trusted sources or OnePlus support channels.
Step-by-Step Process for How to Unbrick OnePlus 11R/Ace 2 Using the MSM Tool
- Download and Install the MSM Tool
Download the MSM Tool compatible with the OnePlus 11R/Ace 2. After downloading, extract the zip file to a folder on your PC. - Install Qualcomm USB Drivers
- Open Device Manager on your Windows PC.
- Right-click on the Start Menu, select Device Manager.
- Look for an Unknown Device or your OnePlus 11R/Ace 2 under “Ports” or “Other devices.”
- Right-click the device, select Update Driver, and install Qualcomm USB drivers. You can find the drivers on trusted sites like Qualcomm’s official website.
- Boot OnePlus 11R/Ace 2 into EDL (Emergency Download Mode)
To use the MSM Tool, the device needs to be in EDL mode:- Power off your OnePlus 11R/Ace 2 completely.
- Hold down the Volume Up button and connect the phone to your PC via a USB cable.
- The device should enter EDL mode, and the MSM Tool should detect it automatically.
- Launch the MSM Tool
Open the MSM Tool you downloaded earlier. Once your OnePlus 11R/Ace 2 is connected in EDL mode, the tool should automatically detect your device. If not, verify that the Qualcomm drivers are properly installed and try again. - Start the Unbricking Process
In the MSM Tool interface, click on the Start or Download button to begin flashing the firmware to your OnePlus 11R/Ace 2. - Wait for the Process to Complete
The MSM Tool will flash the firmware to the device, which may take a few minutes. Be patient and don’t disconnect the device during this process. - Reboot the Device
Once the flashing process is complete, the MSM Tool will display a message indicating success. You can now safely disconnect the OnePlus 11R/Ace 2 from the PC. The device should reboot into the operating system. If it doesn’t boot right away, give it a few more minutes.
Troubleshooting
- Device Not Entering EDL Mode: If your OnePlus 11R/Ace 2 isn’t entering EDL mode, double-check the steps or try a different USB cable or port.
- MSM Tool Doesn’t Detect Device: Ensure that Qualcomm drivers are installed properly. If necessary, restart both your PC and OnePlus 11R/Ace 2.
- Flashing Fails: If the flashing process fails, repeat the procedure or try using a different firmware version. Performing a factory reset after unbricking might also help.
Firmware Download to Unbrick OnePlus 11R/Ace 2
China Version
PHK110domestic_11_14.0.0.700_2023012100010220.zip Download from Here
Global Variants:
CPH2487export_11_A.10_2023032721440135.zip Download from Here
Tools
This is a Paid tool authorization is required.
Password: mgunlock.com
You can use our service below to unbrick OnePlus 12 5G
Contact Us on Telegram from here or WhatsApp from here If you need help.
Qualcomm, MTK platform – USB driver installation
- Download the driver file From Here
- Double-click to install (the default path does not need to be changed)
- Pop up a security window (always allow installation)
- Select restart the computer now
- Complete
How to Unbrick OnePlus 11R/ace 2 – MGunlock.com
How to reboot EDL
- Connect one end of the USB cable to your PC.
- Then connect the other end to your device.
- Now press and hold the Volume Up, Volume Down. after the software launches, remove your hands (or when you see qualcomm 9008 appear in device manager)

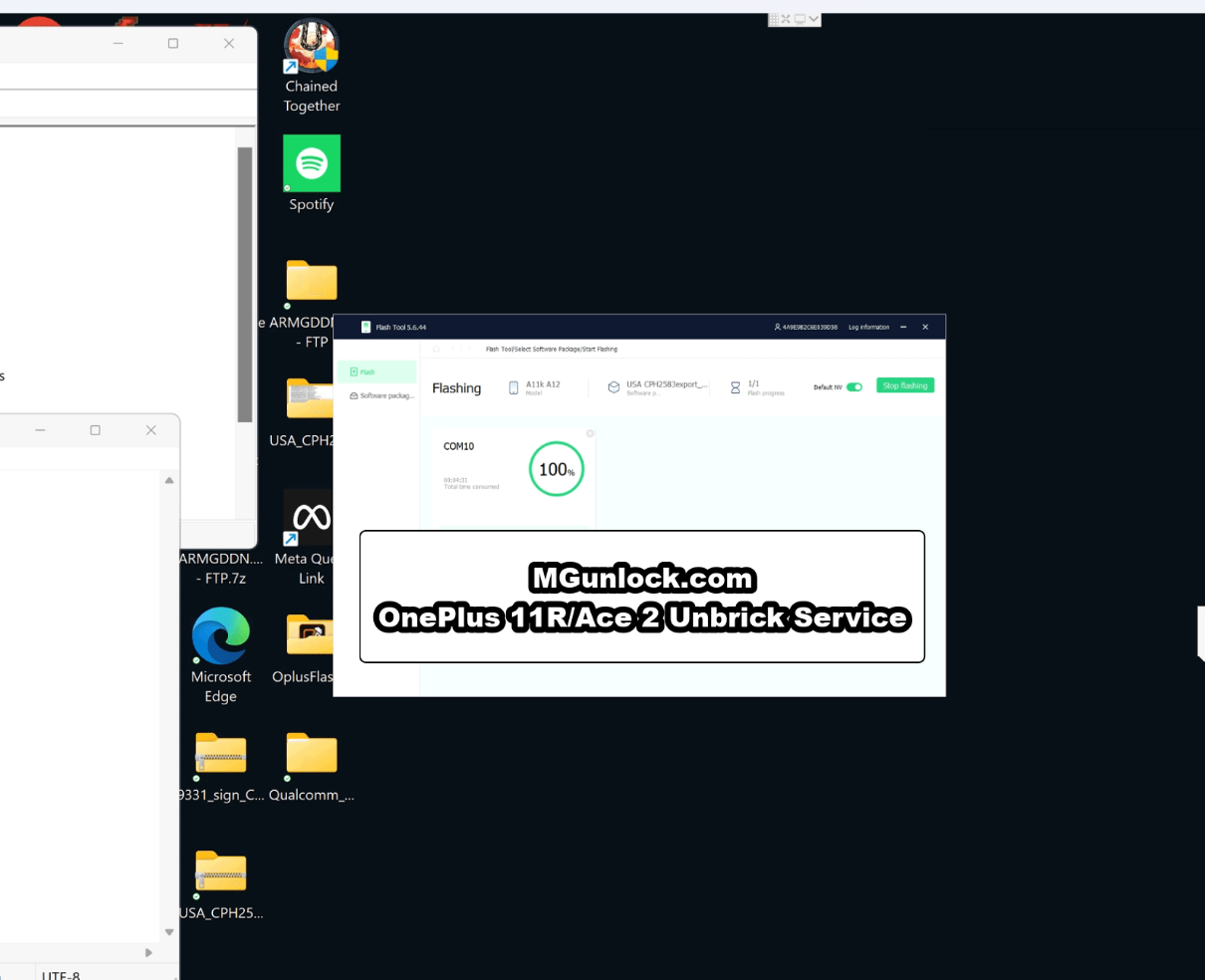

How to Unbrick OnePlus 11R/ace 2 -MGunlock.com
How to Unbrick OnePlus 11R/Ace 2
- Download, Extract ROM File & tool in same folder
- Qualcomm_Drivers_QDLoader driver on your computer
- Login OplusFlashTool.exe
- Select Firmware
- Click “Start” button
- Conect Phone to PC, Enter EDL Mode
- Wait until success, once done. Unplug device and switch it ON >>>Done All
OnePlus 11R/ace 2 Unbrick Service
20$
OnePlus 11R/ace 2 Unbrick Service
OnePlus 11R/ace 2 Unbrick PHK110 Stock ROM Firmware (Flash File). By using this firmware, you can solve all software issues within your OnePlus 11 5G, such as hanging on the logo, FRP reset, fixing stuck Fastboot Mode, bootloop (Lost Fastboot – Lost Recovery), stuck EDL (black screen) ocdt problem wifi network issues.
Qualcomm, MTK platform – USB driver installation
- Download the driver file From Here
- Double-click to install (the default path does not need to be changed)
- Pop up a security window (always allow installation)
- Select restart the computer now
- Complete
How to reboot EDL
- Connect one end of the USB cable to your PC.
- Then connect the other end to your device.
- Now press and hold the Volume Up, Volume Down, and Power keys. after the software launches, remove your hands (or when you see qualcomm 9008 appear in device manager)
